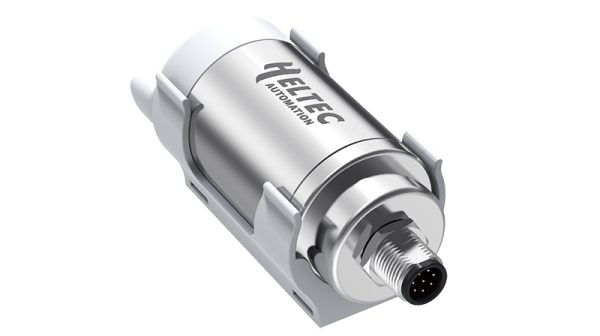

HRI 3622 Sensor Hub Bus Transformer
HRI-3622, a sub-model of the Sensor Hub for Industry series, is designed to drive third-party sensors. Featuring low power consumption, long transmission range, and a built-in 1100mAh battery, it offers IP66 protection with a stainless-steel and high-strength plastic shell for reliable performance in harsh industrial environments.
Product characteristics
- Industrial grade protection structure, IP66 protection grade
- Ultra-low power consumption design, built-in 1100mAh 18350 rechargeable battery
- Support OTA, easy configure with in Web via WiFi
- Wireless data transmission communication radius up to 3km (no-occlusion)
- Compatible with wall fixing or cylinder fixing
Important parameters
| parameters | HRI-3622 |
|---|---|
| Product Main Model | HRI-3621 |
| LoRa chipset | SX1262 |
| Battery Capacity | 1100mAh |
| Battery Type | 18350 rechargeable Li-On battery |
| Max. TX Power | 20±2 dBm |
Important Resources
- Datasheet
- Related links
- Schematic
- Publish MQTT Message
- Subscribe MQTT Messages from LoRa Server
- Data Format Document
