Mesh Node 5262M

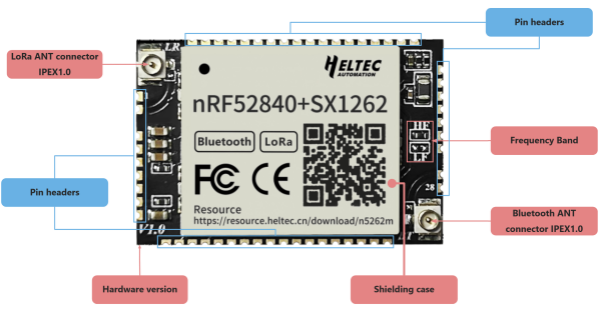

Mesh Node 5262M is a module based on the nRF52840 and SX1262, supporting both Bluetooth and LoRa communication modes. It offers a rich set of pins and interfaces, featuring a 1.27mm pitch stamp hole design, making it compact and easy to integrate into your PCB.

Product Page

Product characteristicss

• nRF52840 (Bluetooth)+SX1262(LoRa)
• 1.27mm pitch stamp hole design, making it compact and easy to integrate
• Offer a rich set of pins and interfaces
• Long transmission range, up to 3~10km in open environments
• Low power consumption, 9 uA in deep sleep

Important parameters

parameters	Mesh Node 5262M
Master and LoRa Chip	nRF52840 + SX1262
Memory	1M ROM; 256kB SRAM
Battery	3.7V lithium battery power supply and charging
Bluetooth	Bluetooth LE: Bluetooth 5, Bluetooth mesh
Power Consumption	Deep Sleep 9uA
Dimensions	30 * 20 * 3.2 mm

Important Resources

• Datasheet
• Schematic diagram
• Pin Map
• nRF Development Framework
• Related links

Product Usage Guide

The following documentation will help you get started quickly with the product

• Install development environment
• Applied to LoRaWAN
• Applied to Meshtatic
• How to use license
