Mesh Node T114

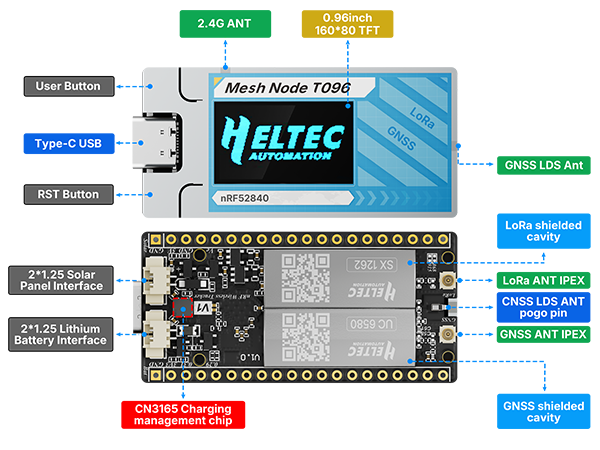

Mesh Node T096 is a low-power development board integrating Bluetooth, LoRa, and GNSS. Based on the nRF52840 MCU, it features an SX1262 LoRa transceiver with PA (up to 28±1 dBm) and a UC6580 GNSS module for positioning. It adopts LDS antennas for compact and efficient RF performance, and is optimized for battery-powered applications. Fully compatible with Arduino and open-source mesh systems such as Meshtastic and MeshCore, it provides a reliable platform for mesh networking and tracking applications.
Product characteristicss
- Integrated Wi-Fi/Bluetooth, LoRa, and GNSS connectivity.
- Ultra-low power design for long battery life.
- Up to 28±1 dBm LoRa output power with LNA bypass support.
- Supports GPS, GLONASS, BDS, Galileo, NAVIC, and QZSS.
- Compatible with Arduino, Meshtastic, and MeshCore ecosystems.
Important parameters
| parameters | Mesh Node T114 |
|---|---|
| Master and LoRa Chip | nRF52840 |
| Max. TX Power | 28±1dBm |
| Battery | Supports 3.7V Li-ion battery power supply and solar panel charging |
| Bluetooth | Bluetooth LE: Bluetooth 5, Bluetooth mesh |
| Dimensions | 52.00 * 25.40 * 10.26mm |
Important Resources
- Datasheet
- Schematic diagram
- Pin Map
- nRF Development Framework
- Related links
Product Usage Guide
The following documentation will help you get started quickly with the product
