WiFi HaLow Module Mini PCIe Interface

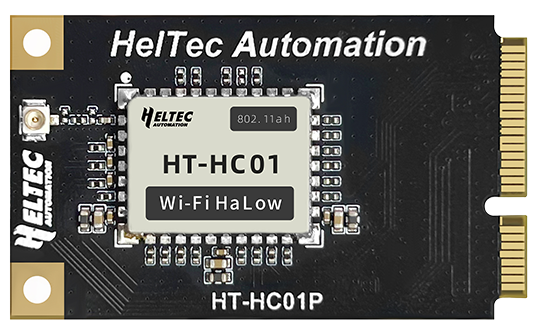

HT-HC01P is a Wi-Fi HaLow module with a mini PCIe interface, operating in the 902–928 MHz band. It supports data rates up to 32.5 Mbps and provides a transmission range of 1–2 km. Compliant with IEEE 802.11ah, it is optimized for battery-powered devices by enabling longer sleep and idle periods, significantly reducing power consumption and extending battery life.
Product characteristics
- Up to 1 km+ long-range Sub-1 GHz communication (902–928 MHz).
- 1–8 MHz channel bandwidth with max 32.5 Mbps data rate.
- Low-power hibernate mode with internal/external wake-up.
- 1 dBm max output power.
- IEEE 802.11ah (Wi-Fi HaLow) certified, with OFDM and strong security.
Important parameters
| parameters | HT-HC01P |
|---|---|
| MCU | MM6108IQ |
| Power Supply | 3.3V |
| HaLow Standard | IEEE 802.11ah |
| Band Width | 1/2/4/8MHz |
| Data Rate | 32.5 Mbps @ 8 MHz |
| Dimensions | 50.9530.003.75mm |
