Wi-FI HaLow Module

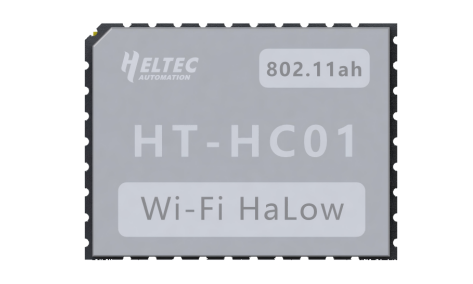

HT-HC01 is a Wi-Fi HaLow module with excellent RF performance, which operates in 902 - 928MHz, with maximum data rates of 32.5Mbps and up to 1-2km transmission range.
Product characteristics
- Long-range transmission
- Channel bandwidth options of 1/2/4/8 MHz
- High data rate
- Support Sub-1 GHz frequency bands, frequency range: 902~928 MHz
- Max output power: 21dBm
Important parameters
| parameters | HT-HC01 |
|---|---|
| MCU | MM6108IQ |
| Power Supply | 3.0~3.6V |
| HaLow Standard | IEEE 802.11ah |
| Band Width | 1/2/4/8MHz |
| Data Rate | 32.5 Mbps @ 8 MHz |
| Dimensions | 18.51426mm |
Important Resources
- Datasheet
- Reference Design
- Footprint
- Resource Station
- SDK on GitHub
- MorseMicro Wi-Fi HaLow For further design documentation for the module, please contact us at support@heltec.cn.
