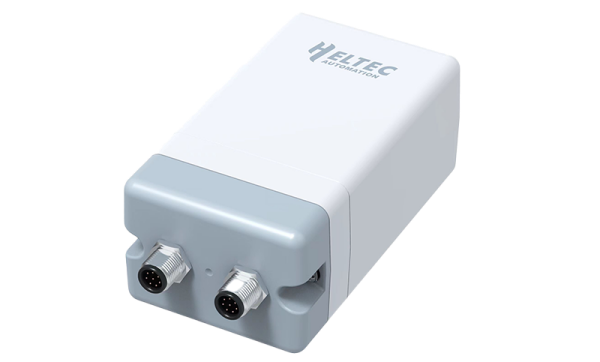

HRI 3632 Wireless Aggregator Bus Transformer
HRI-3632 is a LoRaWAN conveter belonging to Sensor Hub for outdoor series,used to drive various third-party sensors. We have added 4 GPIO to it and equipped it with junction box to ensure the compatibility of its interfaces. Benefits from the IP66 protection provided by high-strength plastics, it can adapt to a variety of complex outdoor environments.
Product characteristics
- Industrial-grade IP66 protection with lightning, ESD, and isolation
- Ultra-low power consumption design
- Wireless data transmission communication radius up to 1.5~5km (noocclusion)
- Working condition: -40~80°C,Working humidity: ≤90% (non-condensing)
- Power supply mode: built-in battery or external 5~24V DC powersupply
Important parameters
| parameters | HRI-3632 |
|---|---|
| Max. Receiving Sensitivity | -136dBm@SF12 BW=125KHzv |
| Signal Range | 5km |
| Battery Capacity | 2000mAh x4 |
| Interface | Flange seat |
| Max. TX Power | 21±1 dBm |
