HTCC AB01 Dev Board V2

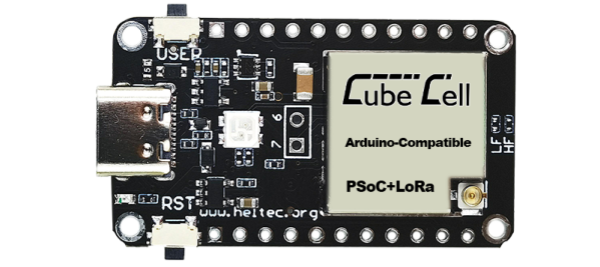

HTCC-AB01 (V2) is based on ASR6052, the chip is already integrated with the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably, and can easily connect lithium batteries and solar panels. HTCC-AB01 (V2) is a Dev-Board. Which is an upgraded version of HTCC-AB01, and can pin-to-pin placement with the previous version.
Product characteristics
- Arduino-compatible, CE & FCC certified
- Based on ASR605x (integrated PSoC® 4000 MCU + SX1262), supporting LoRaWAN 1.0.2
- Ultra-low power design, only 3.5µA in deep sleep
- Power management: battery interface, protection, auto switching, solar charging
- Communication & interfaces: optimized RF, long range, protected USB, built-in CP2102
Important parameters
| parameters | HTCC-AB01_V2 |
|---|---|
| MCU | ASR6502 |
| LoRa Chipset | SX1262 |
| Max TX Power | 21±1dBm |
| USB to Serial Chip | CP2102 |
| Power consumption | Deep Sleep 3.5uA |
| Dimensions | 40.64 * 22.86 * 7.6 mm |
Version comparison
| HTCC-AB01 | HTCC-AB01(V2) | |
|---|---|---|
| MCU | ASR6501 | ASR6502 |
| USB Socket | Micro USB | USB Type C |
| Crystal Oscillator | Ordinary crystal oscillator | High precision temperature compensated crystal oscillator |
| Other Update | Better impedance matching of RF circuits. |
Important Resources
Product Usage Guide
The following documentation will help you get started quickly with the product
