MeshSolar
The outdoor solar communication solution based on MeshSolar supports Bluetooth + LoRa communication, integrates an 18V solar panel, 3*3000mAh, and a waterproof casing. It is perfectly suited for Meshtastic.
Product characteristicss
- Flexible Battery Support 1 ~4 cells with balanced charging and full safety protection
- Versatile Charging Solar MPPT (18–24V), USB PD3.0 fast charge, external DC input
- Smart Control Web-based parameter setup, LED battery level, one-touch shutdown
- Dual Connectivity Bluetooth + LoRa (up to 10km)
- Expandable & Efficient Supports display, GPS, I/O with ultra-low power design
Important parameters
| parameters | MeshSolar |
|---|---|
| BMS chip | BQ4050, CN3795 |
| Main Control Module | HT-n5262M(nRF52840+SX1262) |
| Number of Managed Battery Cells | 1~4 cells |

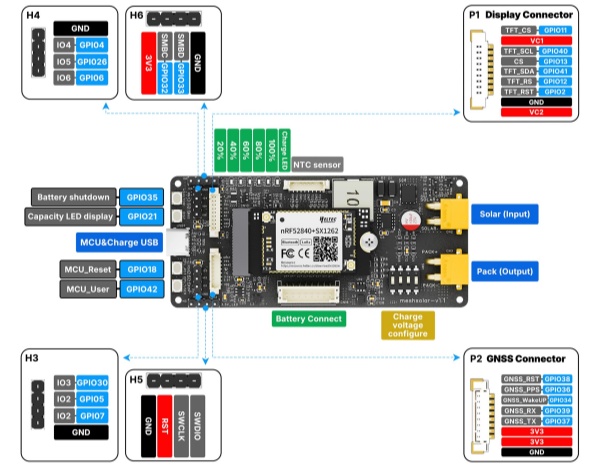

| Expansion Interface | Screen: MX1.25-9P, GNSS: MX1.25-8P |
| Battery Type | Lithium-ion, Lithium iron phosphate |
| Dimensions | 96.97 * 42.97 * 12.00 mm |
Important Resources
Product Usage Guide
The following documentation will help you get started quickly with the product
