RC52-62

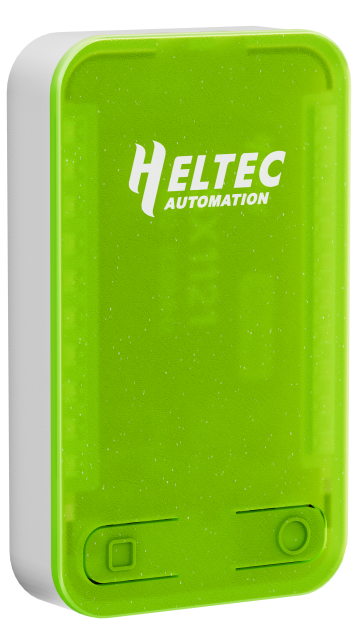

The RC5262 is a compact development board featuring the Nordic nRF52840 MCU and SX1262 LoRa transceiver, supporting Bluetooth 5.0/BLE and LoRa for flexible wireless connectivity with ultra-low power consumption. Its solder-free plug-in design simplifies prototyping and hardware integration. The RC5262 supports Arduino, PlatformIO, and nRF Connect SDK for efficient application development.

Product Page

Product Characteristics

• nRF52840 MCU + SX1262 LoRa transceiver with Bluetooth 5.0/BLE and ultra-low power consumption.
• Supports Arduino, PlatformIO, and nRF Connect SDK.
• Four-Row Dual-Sided, Solder-Free Expansion.
• Board-to-board interface for modular hardware expansion.

Important parameters

parameters	RC5262
Master and LoRa Chip	nRF52840 + SX1262
Max. TX Power	21±1dBm
Power Supply	Recommended 5V-1A
Shell Material	ABS
Dimensions	40.10 * 23.82 * 12.54mm

Important Resources

• Datasheet
• Schematic diagram
• Related links

Product Usage Guide

• nRF52840 Quick Start
• Applied to LoRaWAN
• Applied to Meshtatic
• How to Use License
