Getting Started

H7608 LED Indicator Description​

The description may vary depending on the firmware version.

LED IndicatorDescription
🔴 Red (blinking)Device is booting
🔴 Red (steady on)Button pressed
🟡 Yellow (steady on, 3s hold)Enter configuration mode
⚪ White (steady on, 7s hold)Restore factory settings
🟢🟡 Green & Yellow alternatingConfiguration mode (WiFi + Ethernet)
🔵🟡 Blue & Yellow alternatingConfiguration mode (WiFi + USB)
🟢 Green (blinking)STA mode using Ethernet, HaLow not connected
🟢 Green (steady on)STA mode using Ethernet, HaLow connected successfully
🔵 Blue (blinking)STA mode using USB, HaLow not connected
🔵 Blue (steady on)STA mode using USB, HaLow connected successfully
🩵 Cyan (blinking)AP mode using Ethernet, network input not connected
🩵 Cyan (steady on)AP (Ethernet) — Network connected
🟣 Purple (blinking)AP mode using USB, network input not connected
🟣 Purple (steady on)AP mode using USB, network input connected successfully

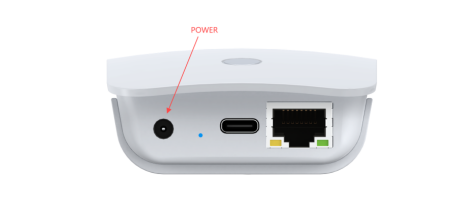

Hardware connection​

Connect the device power, the device RGB light is red, indicating that the device is starting, which takes about 1~2 minutes.

Hardware Connection

First Enter Configuration Page​

After the initial power-on, when the device's red light turns off and transitions to a state of alternating yellow and green blinking, it indicates that the device has successfully booted up and entered configuration mode.

tip

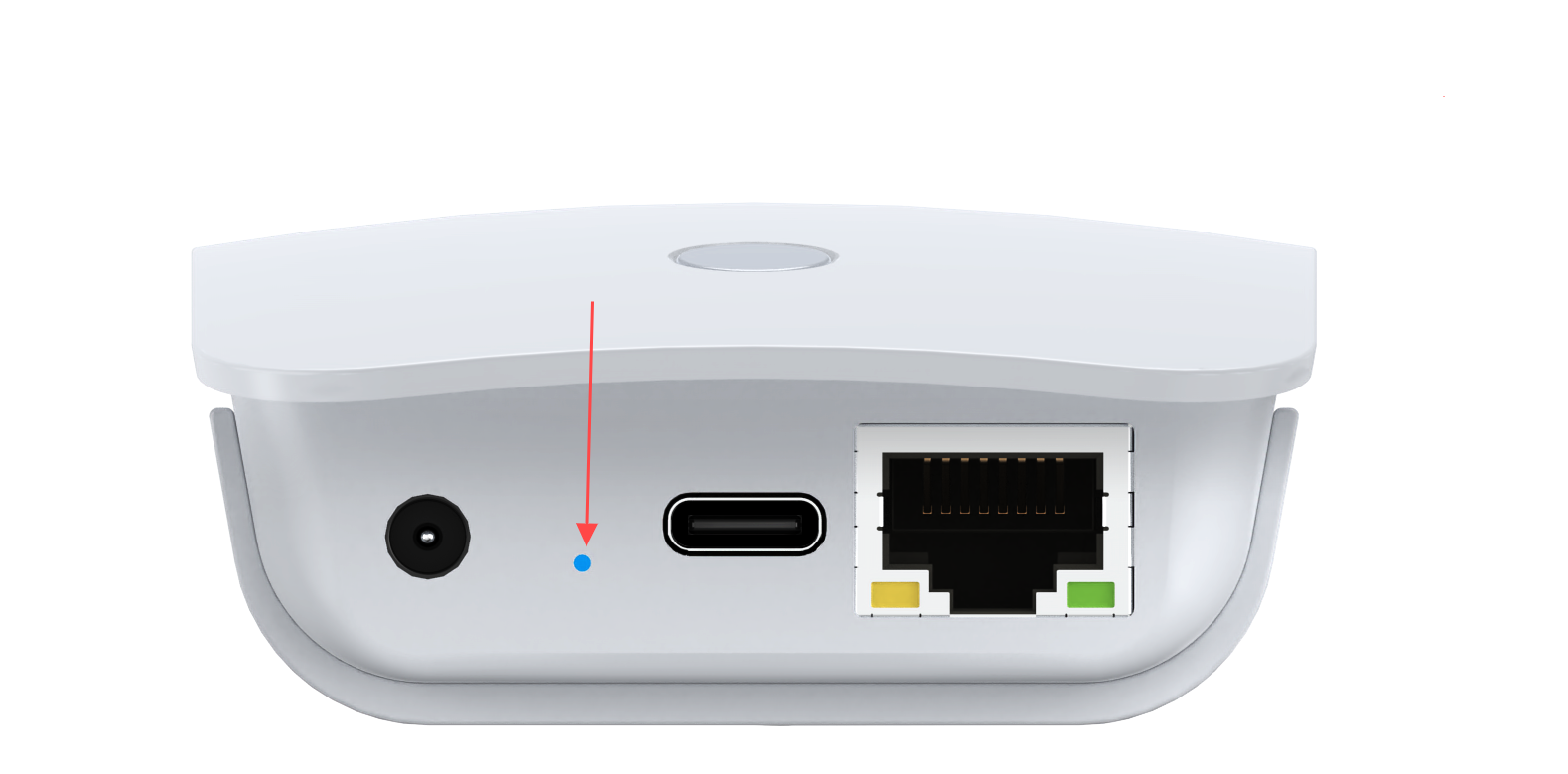

If your device fails to enter setup mode, press the button with the SIM needle for 3 seconds until the yellow light is on and release it.

Configuration Mode

There are two ways to access the configuration page—you can choose either one:

Via Ethernet​

  1. Connect your H7608 to PC (laptop) using Ethernet cable.
  2. Enter 10.42.0.1 in your browser to navigate to the configuration page, the default account is root and password is heltec.org.

Ethernet Config

Via Wi-Fi​

warning

Do not enter Wi-Fi configuration page while connected to a network cable. If you do this accidentally, disconnect the power and reconnect.

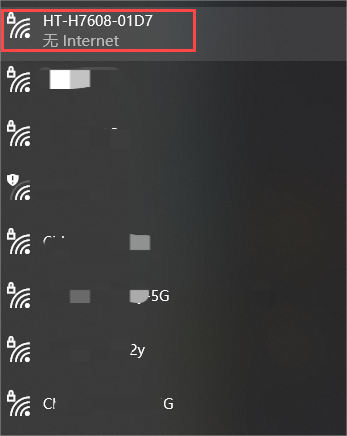

  1. Using the configuration tool (PC or mobile), find the WiFi named HT-HXXX-xxxx-2G and connect to it. The default password is heltec.org.
    WiFi Config

  2. Enter 10.42.0.1 in your browser to navigate to the configuration page, the default account is root and password is heltec.org.
    WiFi Login

Configuration​

HT-H7608 has three typical working modes, please configure according to the specific use mode.

Configuration Modes

Click on the following link to get the configuration instructions for the corresponding mode:

View and Modify H7608's Configuration​

After "First Configuration" you can view the device's own information, downstream device information, and modify device settings on the device's configuration page.

There are many ways to access the configuration page. Here are two common methods:

IP-Based Connection​

  1. Connect the PC (Laptop) to the same LAN as the device, and go to the router configuration page. Find the IP address of the corresponding device.
tip

If you don't know the IP address of the target device, you can check the configuration (management) page of its upstream device.
If the upstream device is in Bridge mode, you will need to check the next upstream device instead.

For example, to locate a HaLow AP device, check the management page of its upstream router. Similarly, to find a HaLow STA device, check the upstream AP's management page—but if that AP is in Bridge mode, you must then check the router above it.

  1. Visit this IP address, default account root, default password heltec.org.

Via AP Remote Access​

  1. Connect the PC (Laptop) to the device 2.4G AP. The default SSID is HT-XXXX-xxxx, and the default password is heltec.org.
    AP Config

  2. Enter 192.168.100.1 in the browser. Default account root, default password heltec.org.

tip

Some early versions might be 192.168.1.1.
In None traffic mode, the default IP is 10.42.0.1.
