ESP32 Wi-FI HaLow Camera

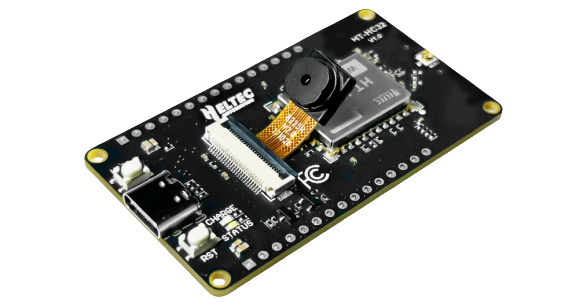

ESP-HaLowCamera is a development board with integrated camera, based on the ESP32-S3 MCU and Wi-Fi HaLow module. It is designed for long-range, high-speed wireless communication. With support for transmission distances of over 1 km and speeds of up to 32 Mbps, it is ideal for IoT applications that require reliable, high-performance connectivity.
Product characteristics
- ESP32-S3 MCU with Wi-Fi, Bluetooth, and Wi-Fi HaLow
- 1 ~2 km range and up to 32 Mbps speed
- Low power with strong penetration
- Built-in 2MP camera and SD card slot
- Type-C, CP2102, battery management, RF shielding
Important parameters
| parameters | HT-HC32 |
|---|---|
| MCU | ESP32-S3R8 |
| Serial port chip | CP2102 |
| HaLow Standard | IEEE 802.11ah |
| Power Supply | 5V@USB, 2.7~4.2V@battery |
| Operating temperature | -30 ~ +85℃ |
| Dimensions | 60.0033.507.10mm |
