Rasberry Pi HaLow Camera

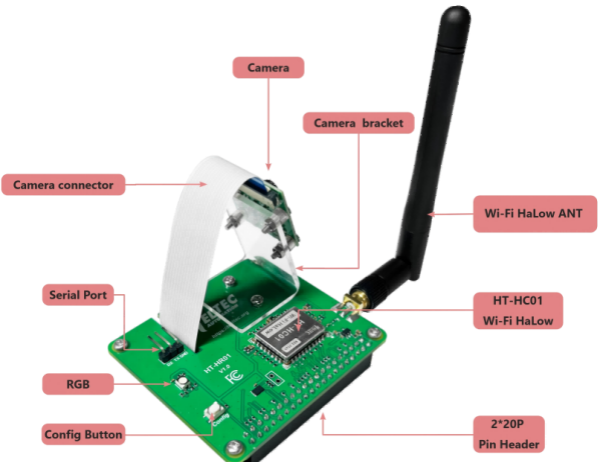

Pi-CamLow is a Raspberry Pi HAT (Hardware Attached on Top) that integrates Wi-Fi HaLow and a camera. Using the firmware we provided, this board allows you to enable various Wi-Fi HaLow functionalities such as AP, node, and Mesh networking on Raspberry Pi.
Product characteristics
- Raspberry Pi HAT, specifically designed for Raspberry Pi, making integration and installation easy.
- Provides firmware
- Excellent Wi-Fi HaLow RF performance
- Powerful camera capabilities
Important parameters
| parameters | HT-HR01 |
|---|---|
| MCU | ESP32-S3R8 |
| Interface | 2*20 female Header Pins, SMA ANT connector |
| HaLow Standard | IEEE 802.11ah |
| Power Supply | 5V |
| Operating temperature | -20~ +70℃ |
| Dimensions | 65*56mm |
Important Resources
note
The current firmware version is compatible with Raspberry Pi 1, 2, 3, and 4.
