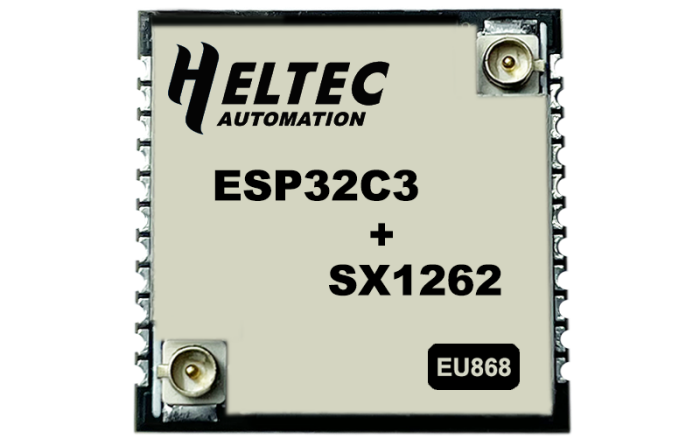

Wireless Min Shell HT-CT62
HT-CT62 is a compact, low-power LoRa/LoRaWAN module with ESP32-C3FN4 + SX1262, integrating Wi-Fi and LoRa for IoT applications like smart cities, farms, and homes.
Product characteristicss
- ESP32-C3FN4 (RISC-V, 160 MHz) microprocessor
- Wi-Fi/BLE connectivity with IPEX 1.0 socket
- LoRaWAN 1.0.2 supported, Arduino compatible
- Ultra-low power design, 10 µA deep sleep
- 1.27 mm stamp-hole SMT, optimized RF matching for long range
Important parameters
| parameters | Wireless Min Shell HT-CT62 |
|---|---|
| Master and LoRa Chip | ESP32-C3FN4 + SX1262 |
| Max. TX Power | 21±1dBm |
| Battery | 3.7V lithium battery power supply and charging |
| Operating temperature | -40 ~ 85℃ |
| Power Consumption | Deep Sleep 10uA |
| Dimensions | 17.78 *17.78 *2.8mm |
Important Resources
Product Usage Guide
The following documentation will help you get started quickly with the product
