RD-GB01

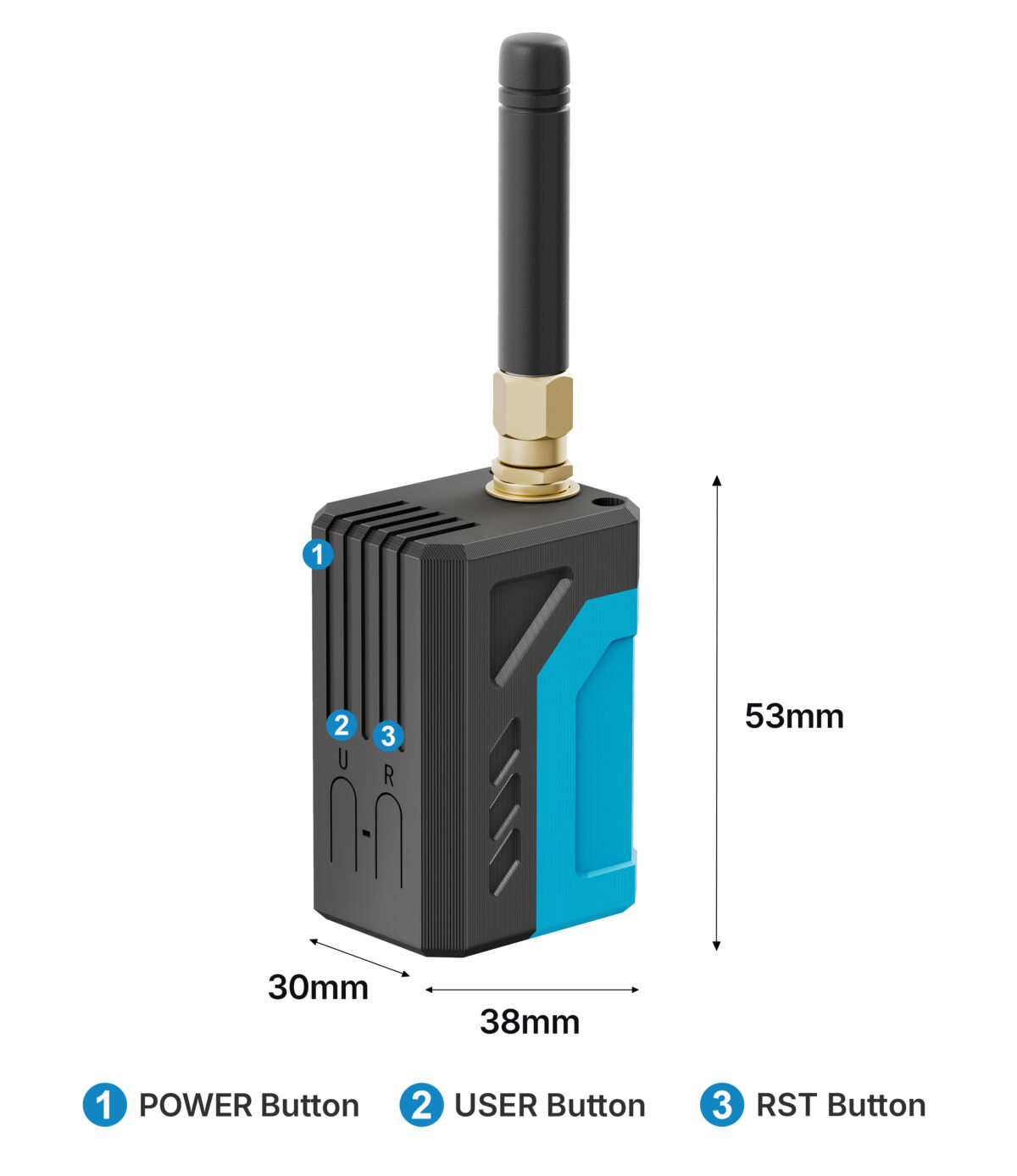

RD-GB01 is an expansion enclosure for RC3262 and RC5262, integrating a dedicated enclosure, rotary switch, and 18650 battery to provide a compact and portable solution for IoT applications.
Product Characteristics
- Includes a rotary switch for device control and menu navigation.
- Integrates an 18650 lithium battery for standalone operation.
- Equipped with a dedicated enclosure for an integrated and portable design.
Important parameters
| parameters | RC3262 |
|---|---|
| Compatible MCU | RC32, RC52 |
| Battery | 18350 Li-ion |
| Antenna gain | 2 dBi |
| Enclosure Material | PLA |
| Dimensions | 52 * 52 * 15mm |
