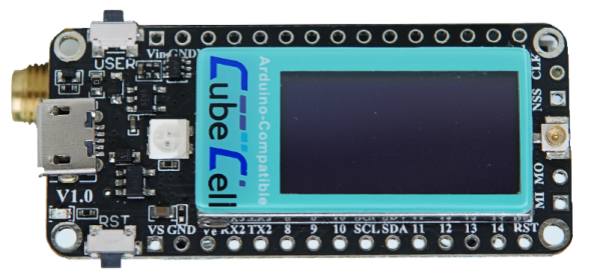

HTCC AB02 Dev-Board Plus

CubeCell™ is a Heltec product line for LoRa/LoRaWAN nodes, based on ASR605x (ASR6501/6502) with integrated PSoC® 4000 MCU and SX1262. It fully supports Arduino®, runs LoRaWAN stably, and easily connects to lithium batteries and solar panels. HTCC-AB02 is a developer-friendly board for quick communication solution verification.

Product Page

Product characteristics

• Arduino-compatible, CE & FCC certified
• ASR605x (MCU + SX1262), supporting LoRaWAN 1.0.2
• Ultra-low power: only 3.5µA in deep sleep
• Power & solar management: battery interface, protection, auto switching
• Rich interfaces: long-range RF, CP2102 USB, 0.96" OLED display

Important parameters

parameters	HTCC-AB02
MCU	ASR6502
LoRa Chipset	SX1262
Max TX Power	22±1dBm
USB to Serial Chip	CP2102
Power consumption	Deep Sleep 3.5uA
DisplaySize	0.96-inchOLED
Dimensions	51.90 * 25.00 * 8.00 mm

Important Resources

• Datasheet
• Schematic diagram
• Pin Map
• AT Command List
• Related links

Product Usage Guide

The following documentation will help you get started quickly with the product

• Install development environment
• Applied to LoRaWAN
• Connect a Solar Panel
• Frequently Asked Questions
