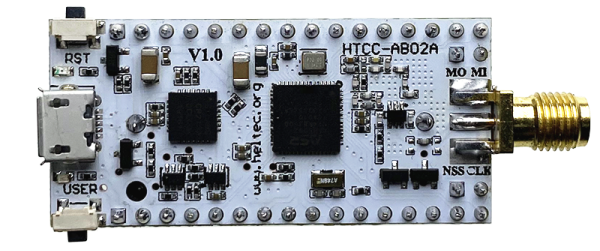

HTCC-AB02A 1/2AA Node
HTCC-AB02A is a Dev-Board. Friendly designed for developers, easy to verify communication solutions.
Product characteristics
- Arduino-Compatible, CE/FCC certified
- ASR605x + SX1262, LoRaWAN 1.0.2
- Ultra-low power, 3.5 µA deep sleep
- 1/2 AA battery + USB auto switch
- Long range & protection, CP2102 for programming/debugging
Important parameters
| parameters | HTCC-AB02A |
|---|---|
| MCU | ASR6502 |
| LoRa Chipset | SX1262 |
| Max TX Power | 22±1dBm |
| USB to Serial Chip | CP2102 |
| Power consumption | Deep Sleep 3.5uA |
| Battery | 1/2AA Lithium |
| Dimensions | 56.6 * 24 * 21.5mm |
Important Resources
Product Usage Guide
The following documentation will help you get started quickly with the product
