HTCC AB02S GPS 6502

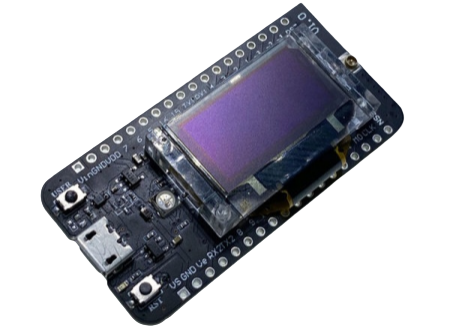

HTCC-AB02S is a Dev-Board. Already integrated AIR530Z GPS module, friendly designed for developers, easy to verify communication solutions.
Product characteristics
- Arduino-compatible, CE & FCC certified
- ASR605x (MCU + SX1262), with LoRaWAN 1.0.2 support
- Ultra-low power design, only 21 µA in deep sleep
- Comprehensive power management: battery interface, protection, solar charging (5.5–7V)
- Enhanced features: long-range RF, CP2102 USB, 0.96" OLED, and Air530 GPS (GPS/Beidou dual-mode)
Important parameters
| parameters | HTCC-AB02S |
|---|---|
| MCU | ASR6502 |
| LoRa Chipset | SX1262 |
| Max TX Power | 22±1dBm |
| USB to Serial Chip | CP2102 |
| Power consumption | Deep Sleep 21uA |
| DisplaySize | 0.96-inchOLED |
| Dimensions | 55.90 * 27.90 * 9.50 mm |
Important Resources
Product Usage Guide
The following documentation will help you get started quickly with the product
