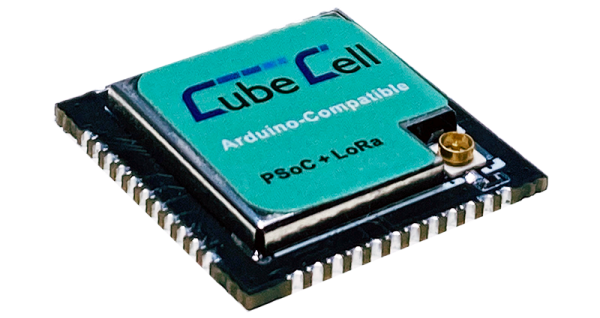

HTCC AM02 Module Plus
HTCC-AM02 is a Module. Supports AT transparent transmission commands, can be directly integrated into the application circuit.
Product characteristics
- Perfect Arduino-Compatible
- Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262
- LoRaWAN 1.0.2 support
- Ultra low power design, 3.5uA in deep sleep
- 1.27 stamp edge design for SMT
Important parameters
| parameters | HTCC-AM02 |
|---|---|
| MCU | ASR6502 |
| LoRa Chipset | SX1262 |
| Max TX Power | 21±1dBm |
| Max. Receiving Sensitivity | -135dBm |
| Power consumption | Deep Sleep 3.5uA |
| Memory | 128Kbites FLASH; 16Kbites SRAM |
| Dimensions | 20.4 * 20.4 * 3mm |
Important Resources
Product Usage Guide
The following documentation will help you get started quickly with the product
