WiFi LoRa 32 V4 R8
The WiFi LoRa 32 now comes with the latest ESP32-S3R8 version.
Product characteristics
- Based on ESP32-S3R8 + SX1262, supporting Wi-Fi b/g/n, BLE, and LoRa.
- Equipped with 8MB PSRAM and 16MB external Flash for UI and complex applications.
- Available in high-power 28 dBm.
- Added SH1.25-2Pin solar panel and SH1.25-8Pin GNSS interfaces.
Main Pin Changes
| Main Change | WiFi LoRa 32 V4 | WiFi LoRa 32 V4 R8 |
|---|---|---|
| Vext_Ctrl | GPIO36 | GPIO40 |
| VGNSS_Ctrl | GPIO34 | GPIO42 |
| LED | GPIO35 | GPIO46 |
| PA_CTX | Unbroken-out | GPIO5 |
| GNSS_RST | GPIO42 | Removed |
| ADC_Ctrl | GPIO37 | Removed |
Important Resources
Product Usage Guide
The following documentation will help you get started quickly with the product
- Install development environment
- Three Development Platforms
- Applied to LoRaWAN
- Applied to Meshtatic
- How to use license
note

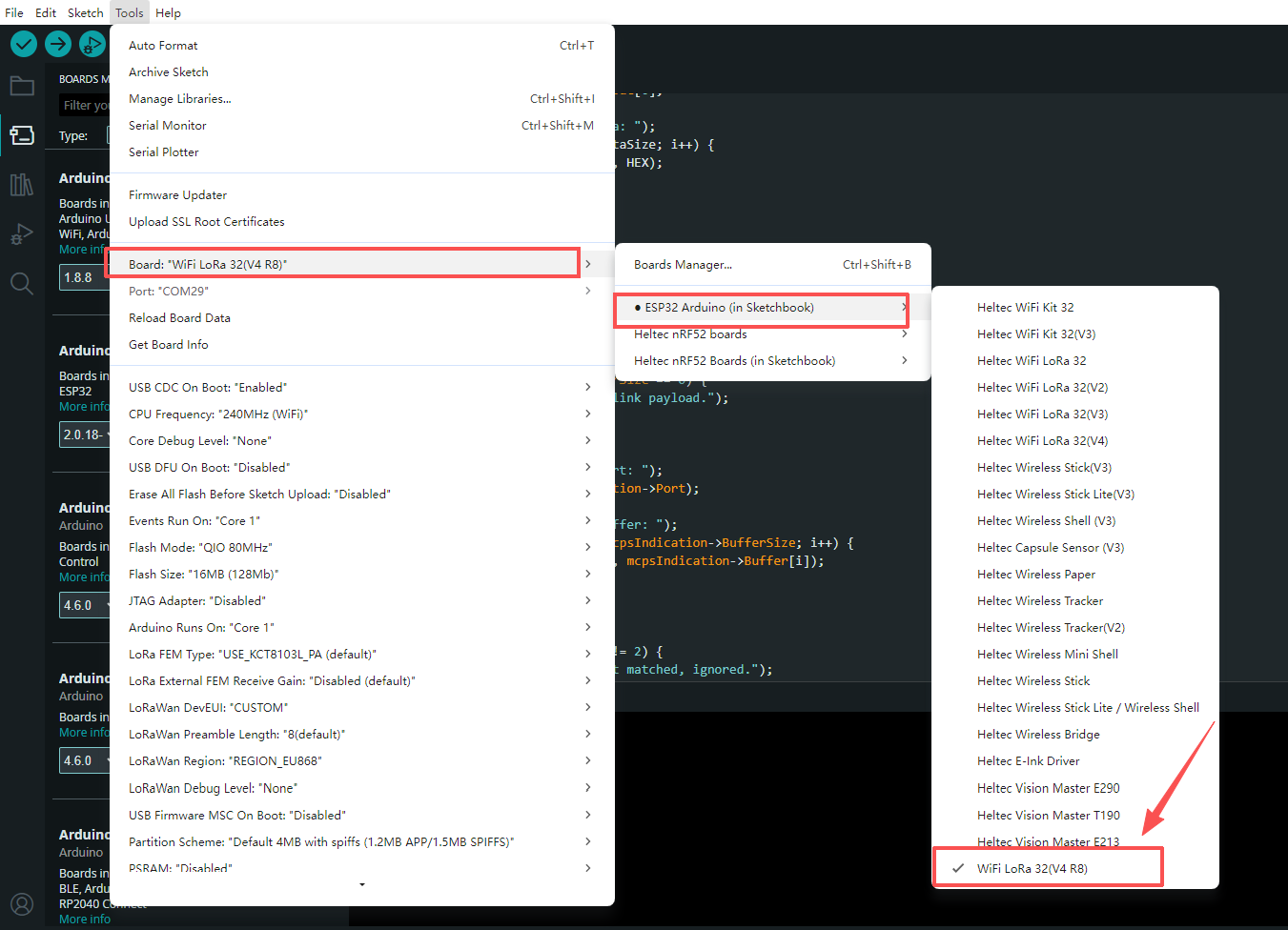

The device is based on the ESP32-S3R8 chip. In Arduino IDE, select WiFi LoRa 32 (V4 R8) to ensure correct configuration and compilation.
