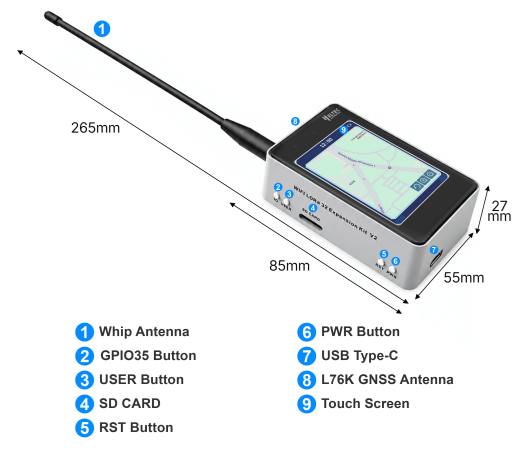

WiFi LoRa 32 Expansion Kit V2
The WiFi LoRa 32 V4-R8. It features an integrated SD card slot, making it well-suited for data-intensive applications such as offline mapping. It also includes a built-in buzzer and GNSS module as standard, and supports expansion with a wide range of external sensors.
Important Resources
- Datasheet
- Main board V4 schematic diagram
- Main board V4 R8 schematic diagram
- Firmware
- Backboard schematic diagram
- Touchscreen Data
- L76K GNSS Module
