Wireless Shell

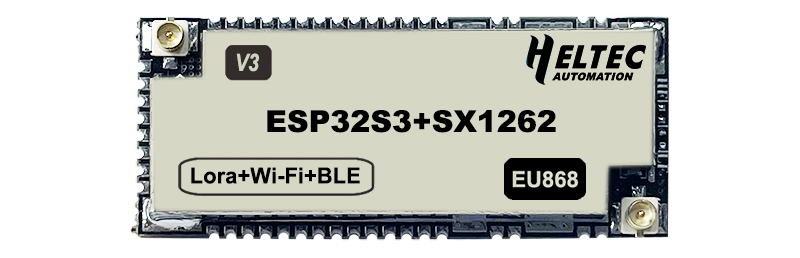

Wireless Shell(V3) is a compact (38.4×16.1×3.2 mm) low-power LoRa module with ESP32-S3FN8 + SX1262, offering Wi-Fi, BLE, and LoRa support for easy Arduino® development.
Product characteristicss
- CE certified, ESP32-S3FN8 dual-core + SX1262 LoRa chip
- RF shielded design, with protection features
- Wi-Fi, LoRa, Bluetooth via IPEX sockets
- Arduino supported, with Heltec LoRaWAN routine (SN activation required)
- Low-power RF design, sleep current as low as 9 µA, ideal for IoT
Important parameters
| parameters | Wireless Shell |
|---|---|
| Master and LoRa Chip | ESP32-S3FN8 + SX1262 |
| Max. TX Power | 21±1dBm |
| Battery | 3.7V lithium battery power supply and charging |
| Bluetooth | Bluetooth LE: Bluetooth 5, Bluetooth mesh |
| Power Consumption | Deep Sleep 9uA |
| Dimensions | 38.4 * 16.1 * 2.8 mm |
Important Resources
Product Usage Guide
The following documentation will help you get started quickly with the product
