Wireless Stick
Wireless Stick is a development board for Wi-Fi, Bluetooth and LoRa. Its functions are basically the same as “WiFi Lora 32”, except that the screen is reduced to 0.49 inch and a shielding shell is added.

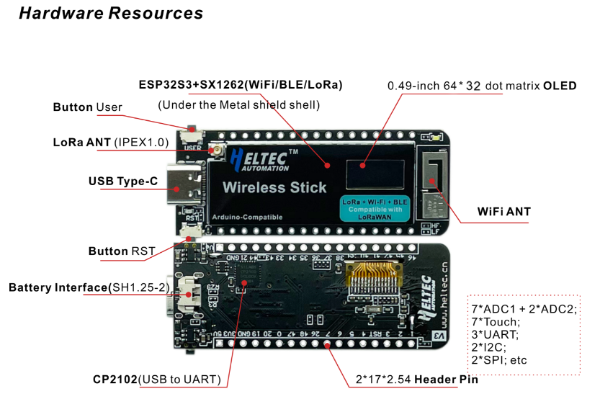

Product characteristicss
- ESP32-S3FN8 MCU, support Wi-Fi, LoRa and BLE
- SX1262 LoRa node chip, compatible with Meshtastic
- Integrated CP2102 USB to serial port chip
- Onboard 0.49-inch 64*32 dot matrix OLED display
- With good RF circuit design and low-power design
Important parameters
| parameters | Wireless Stick |
|---|---|
| Master and LoRa Chip | ESP32-S3FN8 + SX1262 |
| Display | 0.49-inch OLED |
| Max. TX Power | 21±1dBm |
| Bluetooth | Bluetooth LE: Bluetooth 5, Bluetooth mesh |
| Power Supply | 3 ~5V (USB), 3 ~4.2(Battery) |
| Dimensions | 58.08 * 22.6* 8.2 mm |
Important Resources
Product Usage Guide
The following documentation will help you get started quickly with the product
