Wireless Tracker V2

Wireless Tracker V2 integrates the Semtech SX1262 LoRa transceiver and UC6580 GNSS module on the high-performance ESP32-S3FN8 platform, delivering reliable long-range communication and precise positioning in a compact, developer-friendly design. With upgraded 28 ±1 dBm TX power and optimized RF architecture, it provides extended range, stronger penetration, and enhanced system stability for demanding tracking applications.

Product Page

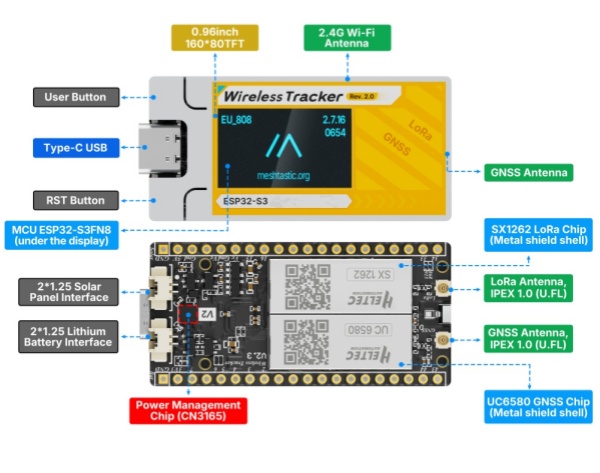

Product characteristics

• ESP32-S3FN8 + SX1262 + UC6580 supporting Wi-Fi, LoRa, Bluetooth, and GNSS.
• 28 ±1 dBm high-power LoRa for longer range.
• Dual-frequency L1 with multi-system GNSS support.
• Onboard lithium battery and solar with smart power management.
• Onboard TFT display and enhanced GNSS reception.

Important parameters

parameters	Wireless Tracker V2
Master and LoRa Chip	ESP32-S3FN8 + SX1262
GNSS Chipset	UC6580
Max. TX Power	28±1dBm
Charging IC	CN3165
Battery	Supports 3.7V Li-ion battery power supply and solar panel charging
Dimensions	53.00 * 25.40 * 9.37mm

Important Resources

• GNSS Datasheet
• Datasheet
• Schematic diagram

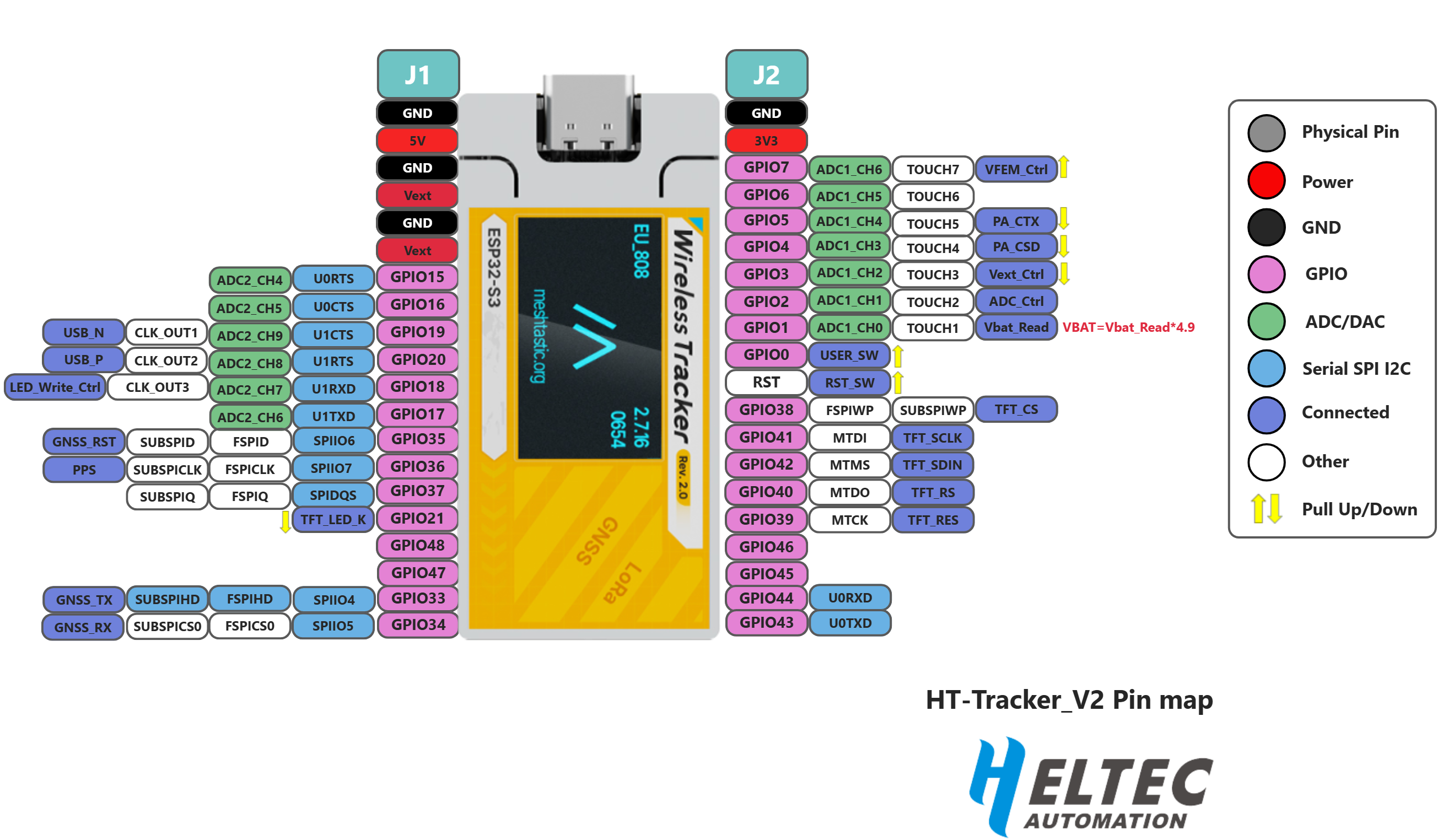

• Pin Map
• Hardware Update Log

Product Usage Guide

The following documentation will help you get started quickly with the product

• Install development environment
• Applied to LoRaWAN
• Applied to Meshtatic
• How to use license
