Hardware Update Log

V1

• First release
• 2017-6-1 public sale
• Pinout diagram of V1
• Schematic diagram of V1
  • 433, 470~510 Version
  • 868~915 Version

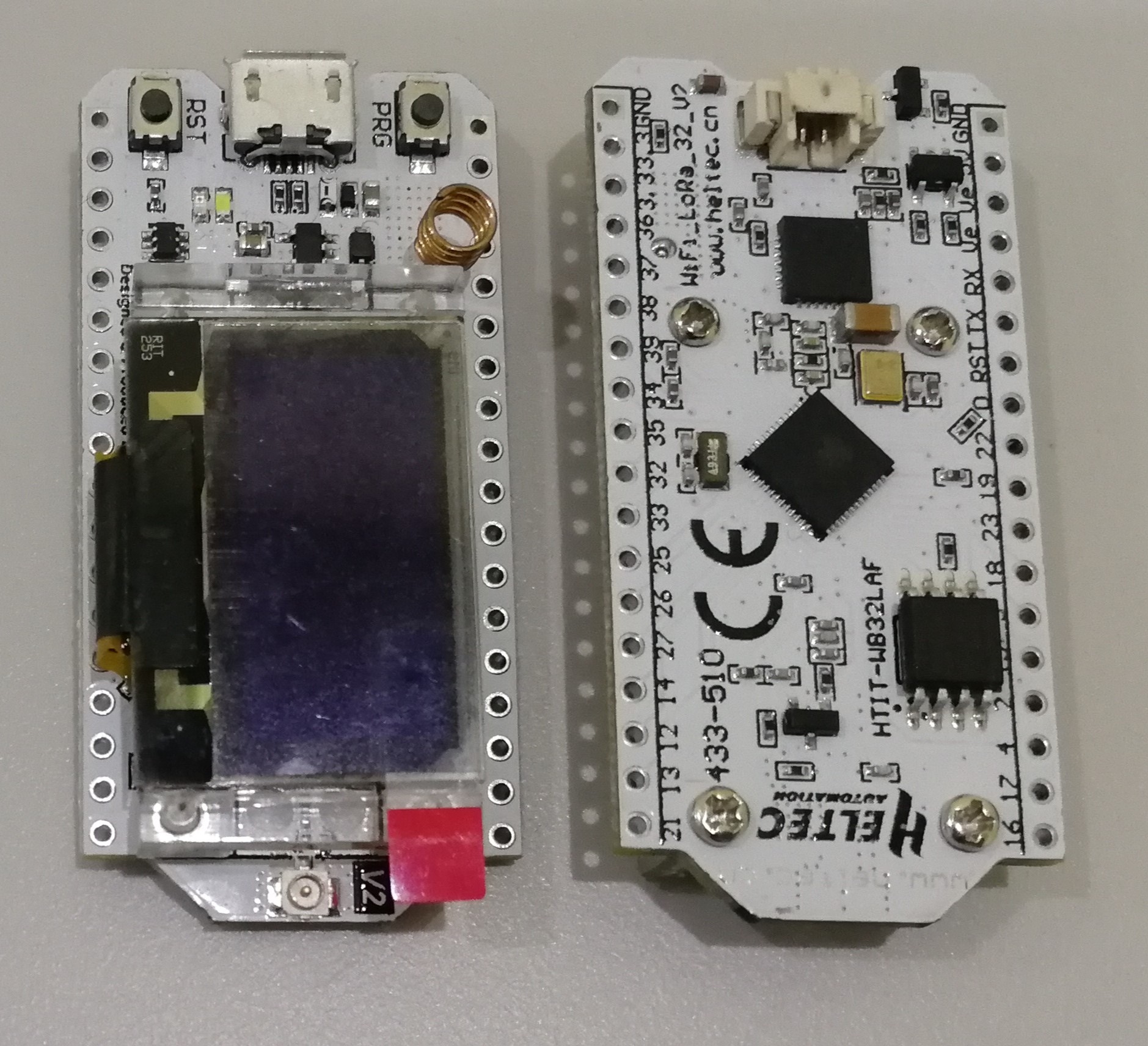

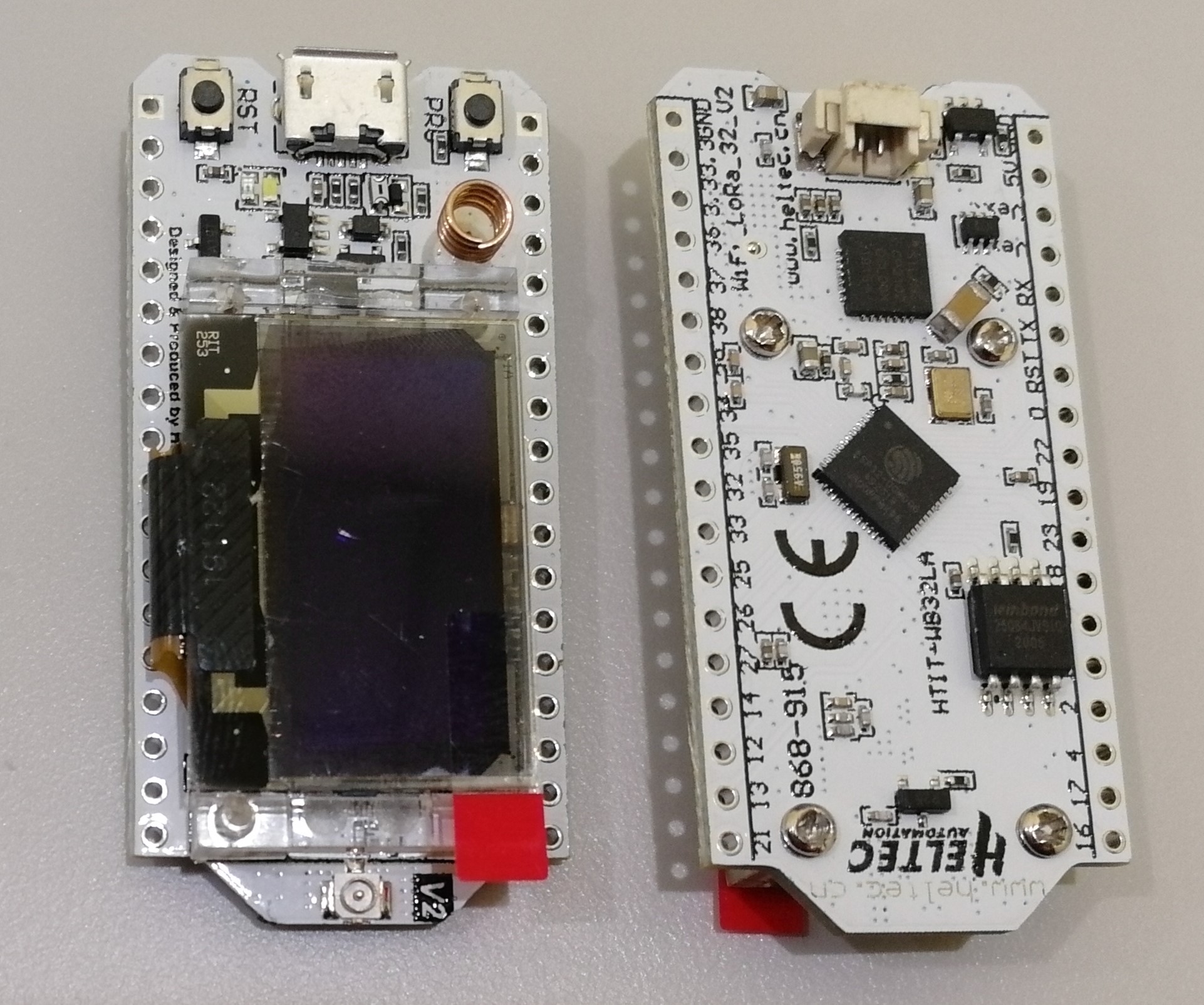

V2

• 2018-9-15 public sale
• 4MB (32M-bits) FLASH upgrade to 8MB (64M-bits) FLASH;
• Use 40MHz HSE (V1 use 26MHz);
• Basic low power design (800uA in deep sleep);
• Add Vext power output pin, users can use this pin to drive some external device (sensor, motor etc.), when system need into deep sleep mode, Vext can be turn off. This pin was controlled by GPIO21, for example: ​Turn ON: digitalWrite(21, LOW); ​Turn OFF: digitalWrite(21, HIGH);
• Changed some pin connection:
• Circuit optimization, system more stable;
• Better power manage system design;
• Better RF impendence matching.
• Pinout diagram of V2
• Schematic diagram of V2
• 433, 470~510 Version
• 868~915 Version

V2.1

• 2019-6-15 public sale
• Change the RF switch from PE4259 to UPG2179, and change the RF part to the official recommended value;
• Change the power detection pin from 13(ADC2: 4) to 37(ADC1: 1).
• Pinout diagram of V2.1
• Schematic diagram of V2.1
  • 433, 470~510 Version
  • 868~915 Version

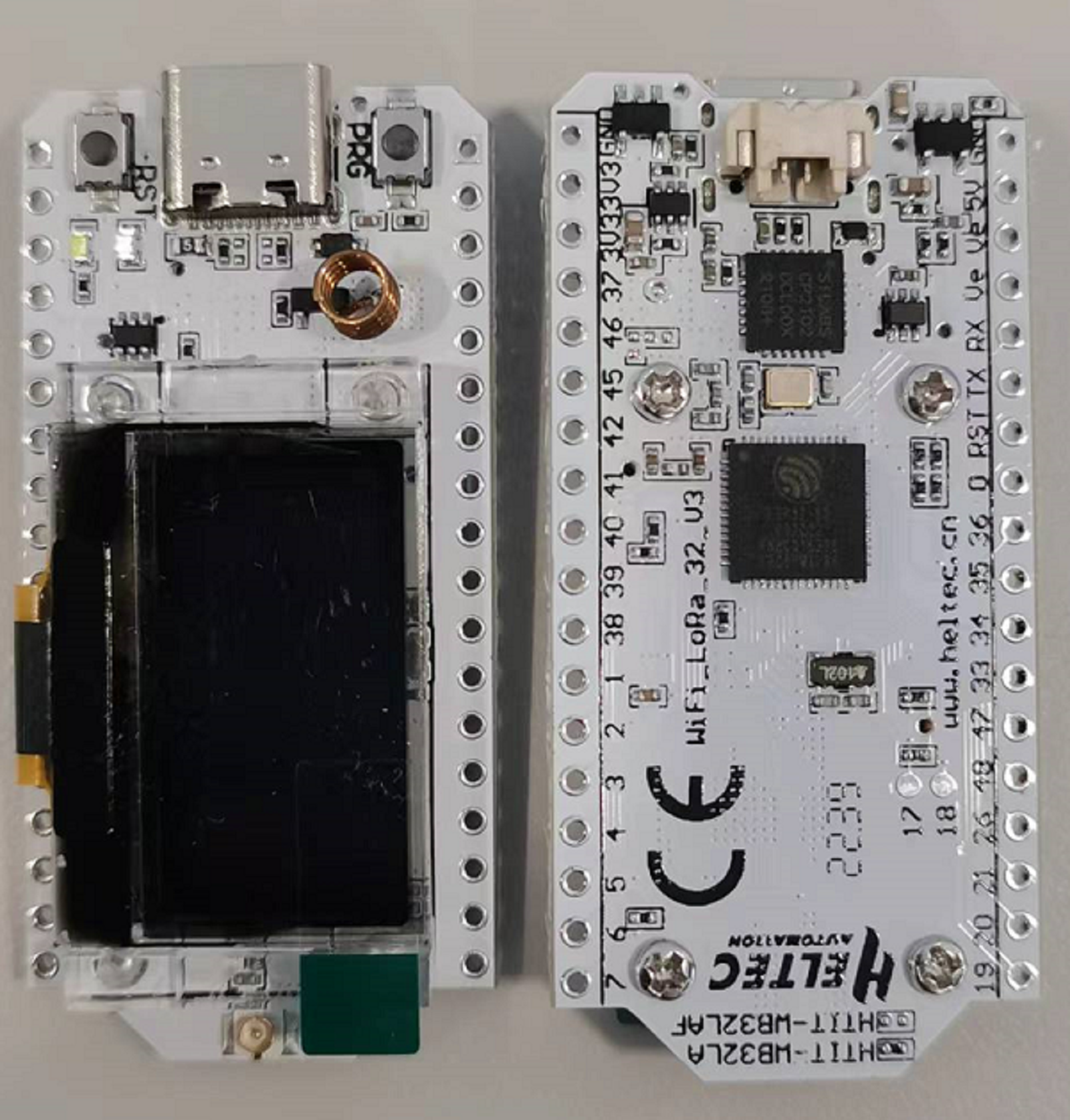

V3

• 2022-09-15 public sale
• MCU is changed from ESP32-D0WDQ6 to ESP32-S3FN8. Specific differences of MCU are shown in：https://products.espressif.com/#/product-comparison.
• USB interface changed from Micro USB to Type-C.
• LoRa chip changed from SX1276 to SX1262.
• The LoRa crystal oscillator is upgraded to temperature compensated crystal oscillator.
• The size, appearance, pin layout and power pins remain unchanged, but the GPIO sequence has changed. Please refer to Pinout diagram.
• Pinout diagram of V3.
• Schematic diagram of V3.

V3.1

• Remove the ideal diode part.
• Increase the 2.4G RF and crystal distance.
• Change the USB-Type-C port to support C to C.

V3.2

The new Schematic Diagram

• Vext changed to LDO.
• Modified the layout according to espressif's suggestions for changes.
• Modify the problem of easy adhesion of some parts.
• The charging chip is changed to LGS4056H.
• Modified voltage detection circuit, now need to pull up the ADC_Ctrl(GPIO 37).
