Wireless Tracker
Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, Bluetooth, LoRa. Wireless Tracker supports L1 + L5/L2, and supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.
Product characteristics
- ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS
- Low power design of dual-frequency multi-system based on 22nm technology
- Supports multi-system positioning (GPS, GLONASS, BDS, Galileo, NAVIC, QZSS) with L1/L5/L2 bands

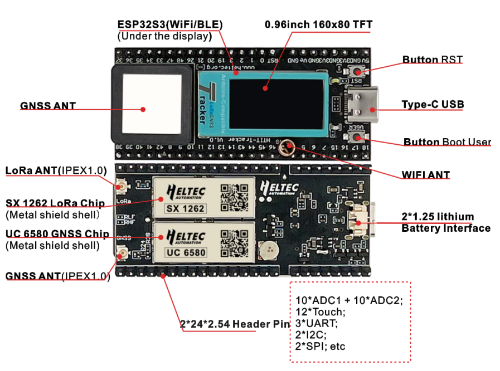

- Onboard Wi-Fi and Bluetooth 2.4GHz antenna, with reserved IPEX (U.FL) for LoRa/GNSS
- 0.96" 160*80 LCD for debug info, battery, and more
Important parameters
| parameters | Wireless Tracker |
|---|---|
| Master and LoRa Chip | ESP32-S3FN8 + SX1262 |
| GNSS Chipset | UC6580 |
| Max. TX Power | 21±1dBm |
| Bluetooth | Bluetooth 5 |
| Battery | 3.7V lithium battery power supply and charging |
| Dimensions | 65.48 * 28.06 * 13.52mm |
Important Resources
Product Usage Guide
The following documentation will help you get started quickly with the product
