Wireless Tracker

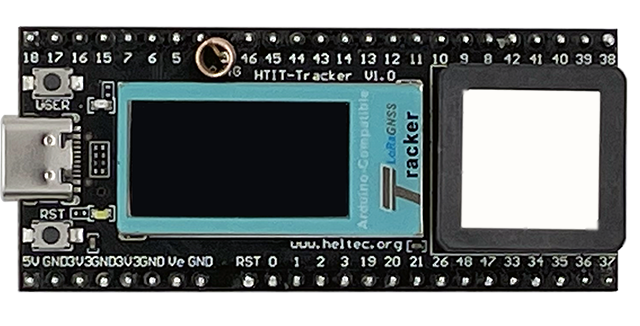

V1.0

• First release
• 2023-6-30 public sale
• Schematic diagram of Tracker 1.0
• Datasheet of Tracker 1.0

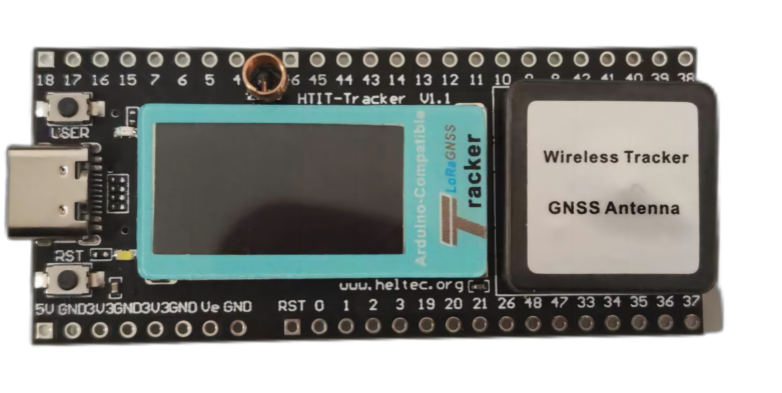

V1.1

• Fixed an issue where the GNSS module loses power when LoRa starts, enhance low power features.
• Added an additional LDO as UC6580 GNSS power source,
• The GNSS Ctrl pin was removed, set GPIO 3 HIGH to enable GNSS power source.
• Schematic diagram of Tracker 1.1
• Datasheet of Tracker 1.1
